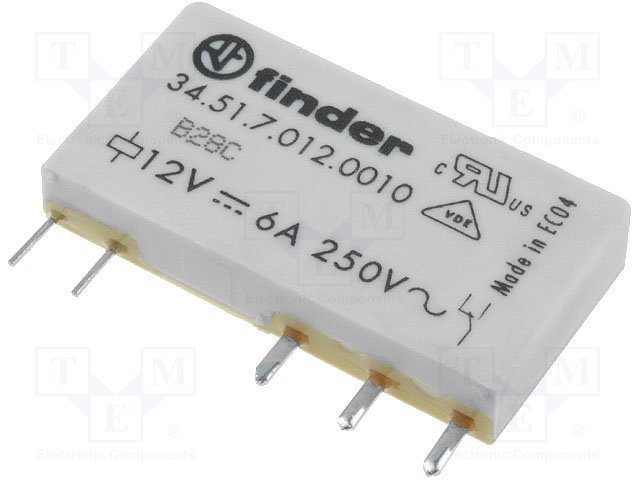

Finder 34.51.7.012.0010 Serisi Ultra İnce Pcb Röle
192,81 TL
310,98 TL
*192,81 TL den başlayan taksitlerle!
34 Serisi Ultra İnce Pcb Röle
RELAY, SPCO, 6A, 12VDC
- Relay Type: General Purpose
- Coil Voltage VDC Nom: 12V
- Contact Current Max: 10A
- Contact Voltage AC Nom: 250V
- Coil Resistance: 3.35kohm
- Contact Configuration: SPCO
- Coil Type: DC, Sensitive
- Coil Current: 7.1mA
- Nom Operating Power: 170mW
- Relay Mounting: PCB
- External Height: 15mm
- External Width: 28mm
- External Depth: 5mm
- SVHC: No SVHC (20-Jun-2011)
- Approval Bodies: CSA, GOST, UL, VDE
- Contact Configuration: SPCO
- Contact Current AC Max: 6A
- Contact Current Max: 10A
- Contact Current Rating: 6A
- Contact Material: AgNi
- Contact Voltage AC Max: 400V
- DC Coil Power: 0.17W
- External Length / Height: 15mm
- Mounting Type: PCB
- No. of Mechanical Operations: 10000000
- No. of Poles: 1
- Operating Temperature Max: 85°C
- Operating Temperature Min: -40°C
- Power Rating: 1.5kVA
- Series: 34
- Switch Current Max: 10A
- Switching Current Max: 10A
-
Switching Voltage AC / DC Min: 250VAC
